How to remove an armrest in Scudo 2004

Hi,
my English might not be very correct, because it's not my native language. I'm the owner of two Scudo's, one 9 seater and the other is 8 seater.
I'm putting the  2 person seat to the front row so that 8 seater become 9.
I need to remove the armrest of the driver seat to fit the bigger seat. Any suggestion ho to do it?
Thanks for any help.

vaz2121

Member

From: Glasgow Living:~ SW. Scotland

Registered: 2015-08-31

Posts: 1,311

Re: How to remove an armrest in Scudo 2004

push the fabric back where the arm rest enters/pivots on the side of the seat and check if there is a locating pin or grub screw on that mounting  that allows removal............

Last edited by vaz2121 (2020-01-03 03:36:49)

panmino

Member

Registered: 2020-01-02

Posts: 2

Re: How to remove an armrest in Scudo 2004

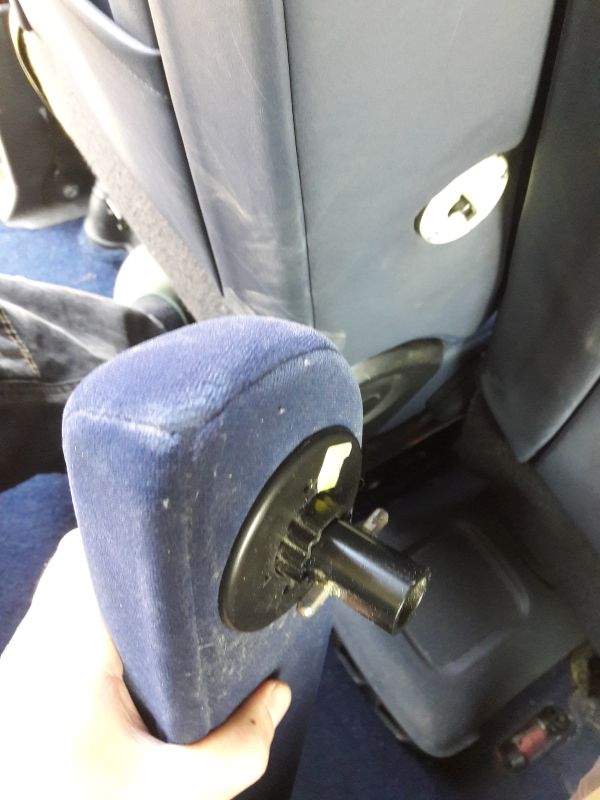

I works in different way. You must puszt the armrest and turn it a little to release the pin which is hold with a spring in the seat.
