route from engine bay to inside of van

Hi guys i have a peugeot expert 2006 model was wondering if anyone recommend a good route to run power cable from battery to amplifier in back of the van, had a look around tonight and cannot see
any obvious points of access?

cheers

Offline

#2 2019-08-11 01:49:59

Casper
Member
From: East Lothian
Registered: 2015-12-20
Posts: 1,334

Re: route from engine bay to inside of van

My last van i put a leisure battery in and had the same problem. I put the cable through the inner wing on the N/S. This ran from cab to passengers door and in the wing from the open door then up to the scuttle drain pipe what i put a little nick in to get cable through to battery but......... If you have a bug amp in the back you could just drop wire from battery down under the van and up through a rear floor grommet.

Offline

#3 2019-08-11 11:44:14

everlastuk
Member
Registered: 2019-03-11
Posts: 7

Re: route from engine bay to inside of van

Hi Casper,

Thanks for replying back do you have any photo's? or maybe take a few photo's please?

thanks

Offline

#4 2019-08-11 13:01:15

kenbw2
Member
From: Bradford/Preston/Anywhere
Registered: 2017-11-26
Posts: 393

Re: route from engine bay to inside of van

Casper wrote:

My last van i put a leisure battery in and had the same problem. I put the cable through the inner wing on the N/S. This ran from cab to passengers door and in the wing from the open door then up to the scuttle drain pipe what i put a little nick in to get cable through to battery but......... If you have a bug amp in the back you could just drop wire from battery down under the van and up through a rear floor grommet.

I did very similar to this for my house electrics:


Last edited by kenbw2 (2019-08-11 13:02:58)


2000 Citroen Dispatch 1.9TD XUD9 Camper Conversion + full time home
1999 Citroen Dispatch 1.9D DW8 Disassembled Camper Conversion
1996 Peugeot 806 1.9TD XUD9 Spare vehicle
1998 Citroen Synergie 1.9TD XUD9 Snapped timing belt

Offline

#5 2019-08-11 13:03:20

Casper
Member
From: East Lothian
Registered: 2015-12-20
Posts: 1,334

Re: route from engine bay to inside of van

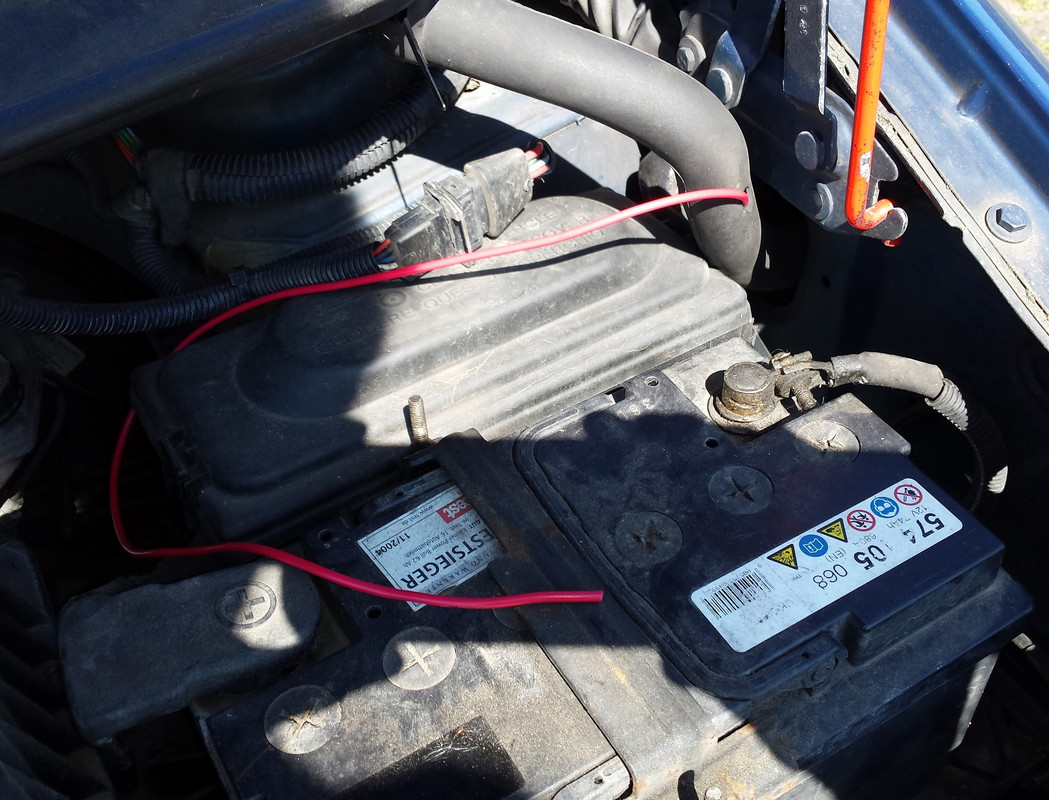

Yes but i think i had a rubber grommet further up i used. As i say it was my last van so cant go look for sure. As for other end this is the only picture i have what shows the wire route


Offline

#6 2019-08-11 13:30:31

everlastuk
Member
Registered: 2019-03-11
Posts: 7

Re: route from engine bay to inside of van

thanks for the pic, is that the drain pipe being used?

thank you

Offline

#7 2019-08-11 13:34:43

Casper
Member
From: East Lothian
Registered: 2015-12-20
Posts: 1,334

Re: route from engine bay to inside of van

everlastuk wrote:

thanks for the pic, is that the drain pipe being used?

thank you

Yes but that wire as said was for a split charger so had thick coating so was not worried about water. You could drill a hole into the side if you want but use an open rubber grommet so to protect the wire from chaffing. Someone said there was a way through the bulkhead up behind the battery but i could never find that route.

Offline

#8 2019-08-11 13:42:53

everlastuk
Member
Registered: 2019-03-11
Posts: 7

Re: route from engine bay to inside of van

Yea ive tried looking behind the battery too but couldnt find any clear route
